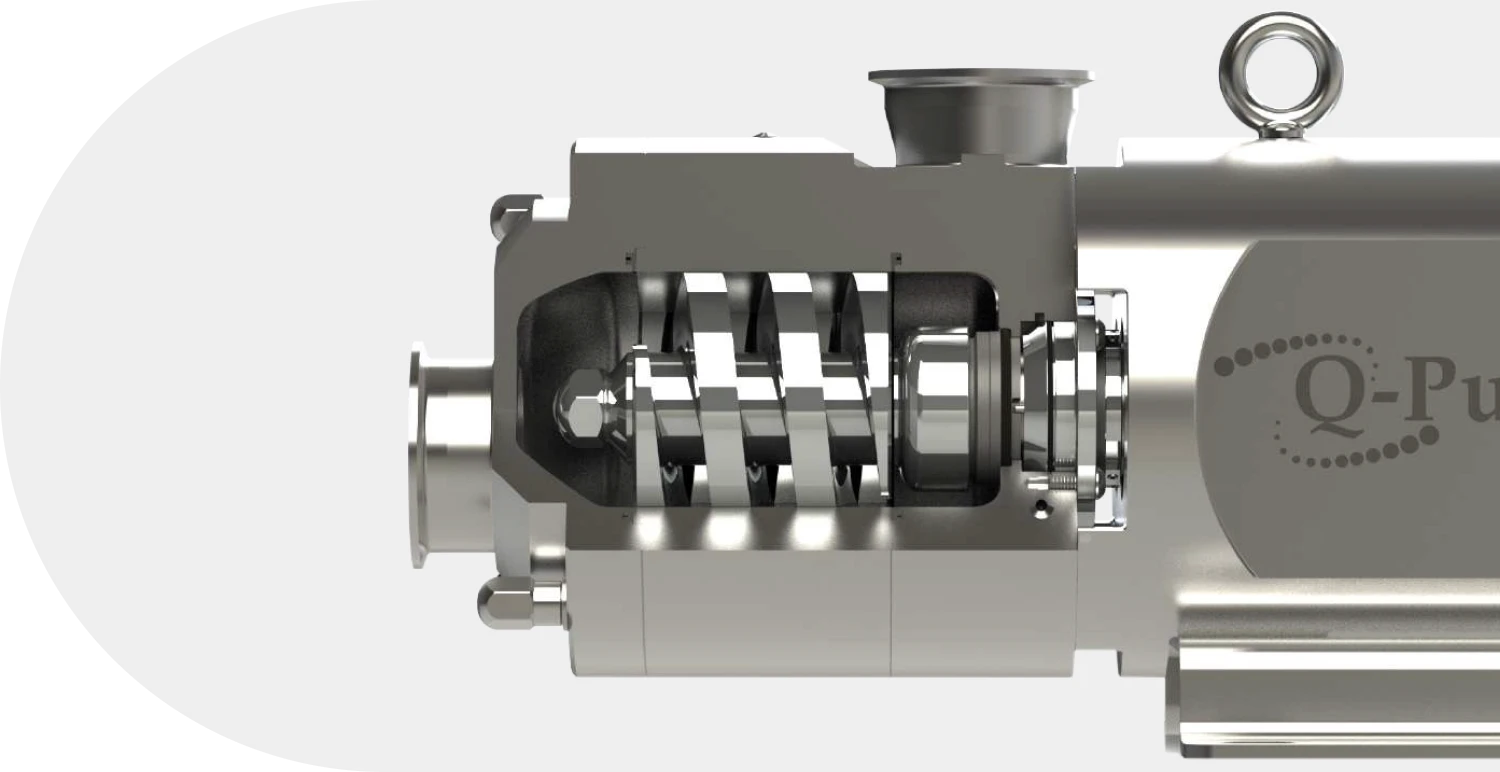

Twin Screw Pump
From the Q-Pump Series
The QTS Pump, manufactured by Q-Pumps, is renowned for its robust performance in various industrial applications, especially in the food processing and pharmaceutical industries where hygiene and reliability are paramount.
Ideal pump for industrial processes

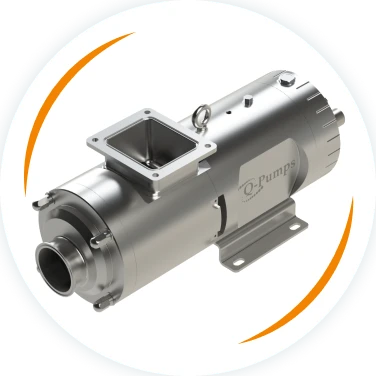

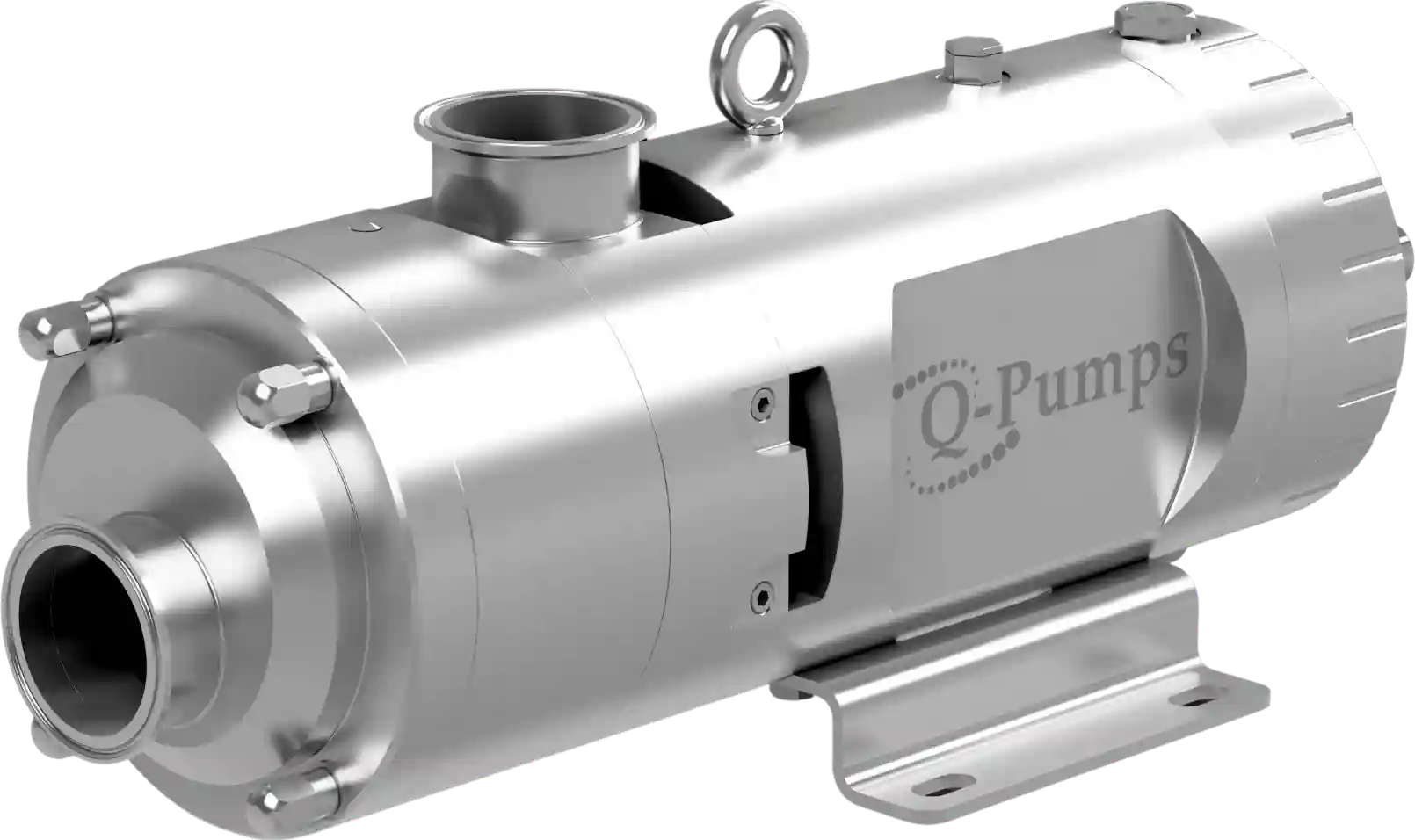

The QTS is a twin screw pump, 100% sanitary use and ideal as a CIP (Clean-In-Place) and process pump, which reduces time and maintenance costs.
Characteristics and advantages
The following are the characteristics and advantages of the QTS Pump
Characteristics
-
Self-priming
-
Manufactured in 100% stainless steel, wet parts in SS 316L
-
Speed up to 3000 rpm*
-
Can handle products with up to 60% entrained air
-
Clamp connections (standard) and DIN, SMS, Bevel Seat connections available
-

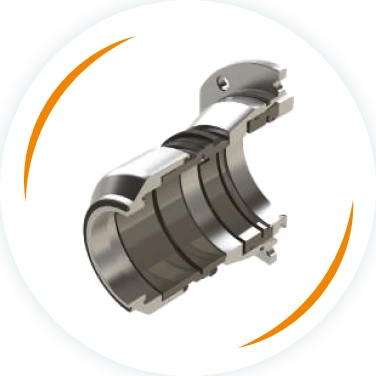

Single and double mechanical seal
-
Durable stainless steel bearing box
Advantages
-
Pulsation-free
-
100% high-speed CIP
-
Constant flow
-
Easy assembly and disassembly
-
Ideal for abrasive products
-
No contact between casing and rotor, even at high pressures
-
Excellent suction capacity, eliminating low NPSH problems
-
Gentle handling of shear-sensitive products
-
Fully drainable design
Technical characteristics
-
Max Flow: 3,218 lpm
-
Max Viscosity: up to 1,000,000 cP
-
Max Pressure: 25 bar
-
Max Temperature: 120 °C
